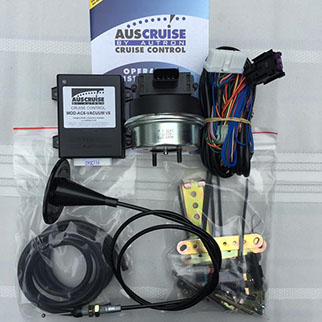

AusCruise AC-5CC-Vacuum Cruise Control



These Cruise Control are designed to be Professionally installed, and can be installed to

most vehicles.

The AC-5CC-VACUUM has a New three solenoid Vacuum Actuator for maximum safety.

The actuators have cables fitted with cast metal ends for that OEM reliability and style.

All the Professional range of AUSCRUISE cruise controls use OEM connectors on there

wiring looms for maximum reliability.

With the AC-5CC-VACUUM you get a choice of AusCruise Steering Wheel Switch, Stalk

Switch or Dash Switch. You can also use most OEM switch's by using an optional interface

module and Handheld Diagnostic & Programming Tool to update the Cruise Control

Program



Switches can be viewed in our gallery ( click on Products )



FEATURES



• ECU Speed signal pickup



• SET - Set cruise control to current speed



• RES - Resume Cruise control to previous speed



• Resume speed memory even after ignition has been turned off



• ACC - Hold down to accelerate under cruise control



• DEC - Hold down to decelerate under cruise control



• Tap Up Tap Down feature



• Two colour indicator light on most Switches or on Dash. Green = Cruise ON and Orange = Cruise ENGAGED



• Selection of switches available.



• Diagnostic Mode



• On Road Calibration Mode



• Three Solenoid Vacuum Actuator



• Suits Most Automatic FWD, RWD and 4X4 Vehicles



• Suits both Automatic and manual Transmission vehicles



• Mechanical Clutch switch input.



• Over-Rev (Tacho) input.



• Can be installed to older Carburettor vehicles with Optional Magnetic Speed pickup or using Tacho speed sensing (Tacho speed sensing only recommended on manual vehicles)



• OEM Connectors used on wiring looms



• Compatible with the Professional Handheld Programming and Diagnostic Tool



• Australian Designed



• Electronics module manufactured in Australia using state of the art SMT production line.



• Optional Single Speed over speed alert



• Optional Multi-Resume, there is no need to set desired speed every time, you can set your 3 favourite speeds into the cruise controls memory



• Optional Multi- Speed Over Speed Alert



• Optional Clutch controlled Coast / Resume to allow gear changing on manual vehicles.



• On board Speed signal buffering



• On board speed signal Dividing



• High input pulse rate , now capable of up to 200,000 Pulses per km on speed input.



• On Board Buzzer for Over Speed Alert.



• Audible chirp from Buzzer when switch buttons are pressed (Programmable)



• Programmable pull-up on Clutch input (makes our cruise control easier to intergrate into vehicle)



• Programmable pull-up on Speed input (makes our cruise control easier to intergrate into vehicle)



• Improved Caliberate Mode - Buzzer chirps as well as LED flaching for Gain setting.



• Current Limiting Protection on Horn Circuit - Improved interfacing with vehicle horn wiring.



Please contact us about your nearest Dealer for quotation on the supply and installation of these cruise controls.
