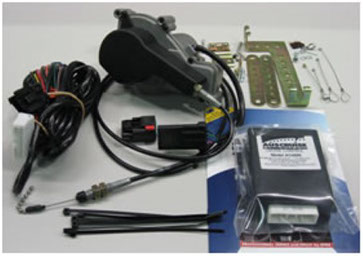

AusCruise AC-5CC-Electric Cruise Control

The Cruise Control is designed to be Professionally installed, and can be installed

to most vehicles.

The AC-5CC-ELECTRIC has an Australian Made Actuator.

The actuator has cables fitted with cast metal ends for that OEM reliability and style.

All the Professional range of AUSCRUISE cruise controls use OEM connectors on

there wiring looms for maximum reliability.

With the AC-5CC-ELECTRIC you get a choice of AusCruise Steering Wheel Switch,

Stalk Switch or Dash Switch's. You can also use most OEM switch by using an

optional interface module and Handheld Diagnostic

& Programming Tool to update the Cruise Control Program



Switches can be viewed in our gallery ( click on Products )



FEATURES



ECU Speed signal pickup



SET - Set cruise control to current speed



RES - Resume Cruise control to previous speed



Resume speed memory even after ignition has been turned off



ACC - Hold down to accelerate under cruise control



DEC - Hold down to decelerate under cruise control



Tap Up Tap Down feature



Two colour indicator light on most Switches or on Dash. Green = Cruise ON and Orange = Cruise ENGAGED



Selection of switches available.



Diagnostic Mode



On Road Calibration Mode



Three Solenoid Vacuum Actuator



Suits Most Automatic FWD, RWD and 4X4 Vehicles



Suits both Automatic and manual Transmission vehicles



Mechanical Clutch switch input.



Over-Rev (Tacho) input.



Can be installed to older Carburettor vehicles with Optional Magnetic Speed pickup or using Tacho speed sensing (Tacho speed sensing only recommended on manual vehicles)



OEM Connectors used on wiring looms



Compatible with the Professional Handheld Programming and Diagnostic Tool



Australian Designed



Electronics module manufactured in house on our state of the art SMT production line.



Optional Single Speed over speed alert



Optional Multi-Resume, there is no need to set desired speed every time, you can set your 3 favourite speeds into the cruise controls memory



Optional Multi- Speed Over Speed Alert



Optional Clutch controlled Coast / Resume to allow gear changing on manual vehicles.



On board Speed signal buffering



On board speed signal Dividing



High input pulse rate , now capable of up to 200,000 Pulses per km on speed input.



On Board Buzzer for Over Speed Alert.



Audible chirp from Buzzer when switch buttons are pressed (Programmable)



Programmable pull-up on Clutch input (makes our cruise control easier to intergrate into vehicle)



Programmable pull-up on Speed input (makes our cruise control easier to intergrate into vehicle)



Improved Caliberate Mode - Buzzer chirps as well as LED flaching for Gain setting.



Current Limiting Protection on Horn Circuit - Improved interfacing with vehicle horn wiring.



Please contact us about your nearest Dealer for quotation on the supply and installation of these cruise controls.
